ST9-T-芯固信息

產品概述

ST9-T是一款8英寸堅固型平板電腦，搭載聯發科Unisoc T7510八核處理器（4×[email protected] + 4×[email protected]），運行Android 10.0作業系統。配備8GB/256GB儲存組合、8英寸1200×1920解析度IPS顯示螢幕（典型亮度370尼特/最大亮度390尼特）、500萬畫素前置/1300萬畫素後置攝像頭（配備閃光燈）、7800mAh大容量電池（視訊播放續航16.5小時），支援5G/4G多頻段連接、WiFi 5及藍牙5.0。具備IP65防護等級、豐富的介面與擴充模組，為5G現場應用及工業物聯網場景提供長續航穩定效能。

核心特性

Android 10.0作業系統，搭載聯發科Unisoc T7510八核處理器（4×[email protected] + 4×[email protected]）
PowerVR GM9446圖形處理器，8英寸1200×1920解析度IPS顯示螢幕（典型亮度370尼特、最大亮度390尼特）
8GB/256GB固定儲存配置，7800mAh電池（視訊播放續航16.5小時）
500萬畫素前置 + 1300萬畫素後置攝像頭（配備閃光燈），支援手寫筆與濕手操作
5G（N41/N78/N79）+ 4G LTE多頻段連接，WiFi 5及藍牙5.0無線傳輸
IP65防塵防水等級、1.2公尺防跌落保護（通過MIL-STD-810G認證）
豐富介面配置：Type-C（支援OTG）、USB 2.0×2、RS232、彈針擴充介面
可選配超高頻RFID（M-500/M-301）、一维/二维條碼掃描（NLS-N1/M1/SE2707）及指紋識別功能

技術規格 (ST9-T)

作業系統	Android 10.0
中央處理器	聯發科Unisoc T7510（八核、八執行緒；2.0GHz）- Arm Cortex-A55×4 @1.8GHz、Arm Cortex-A75×4 @2.0GHz
圖形處理器	PowerVR GM9446
記憶體/儲存空間	8GB/256GB
液晶顯示螢幕	8英寸IPS，解析度1200×1920；370尼特（典型值）、390尼特（最大值）
觸控螢幕	10點觸控，支援手寫筆，支援濕手操作
攝像頭	前置：500萬畫素；後置：1300萬畫素（配備閃光燈）
電源與電池	7800mAh；3.8V；充電時間：約6小時；使用時間：16小時30分鐘（音量50%、亮度60%、播放本地1080P影片）
無線廣域網路	2G GSM：850/900/1800/1900；3G WCDMA：B1/2/5/8；4G LTE：B1/2/3/5/7/8/34/38/39/40/41；5G：N41/N78/N79
衛星定位	北斗、GPS、格洛納斯
無線區域網路	802.11a/b/g/n/ac（2.4G/5G雙頻），支援無線熱點（行動熱點）
藍牙	5.0版本
近場通訊	13.56 MHz，讀取距離：1-3公分；支援ISO14443 A型標準
感測器	光感測器、距離感測器、氣壓感測器、重力感測器、加速度感測器、陀螺儀、震動馬達
尺寸	236×144×17.4公厘
重量	630±20公克

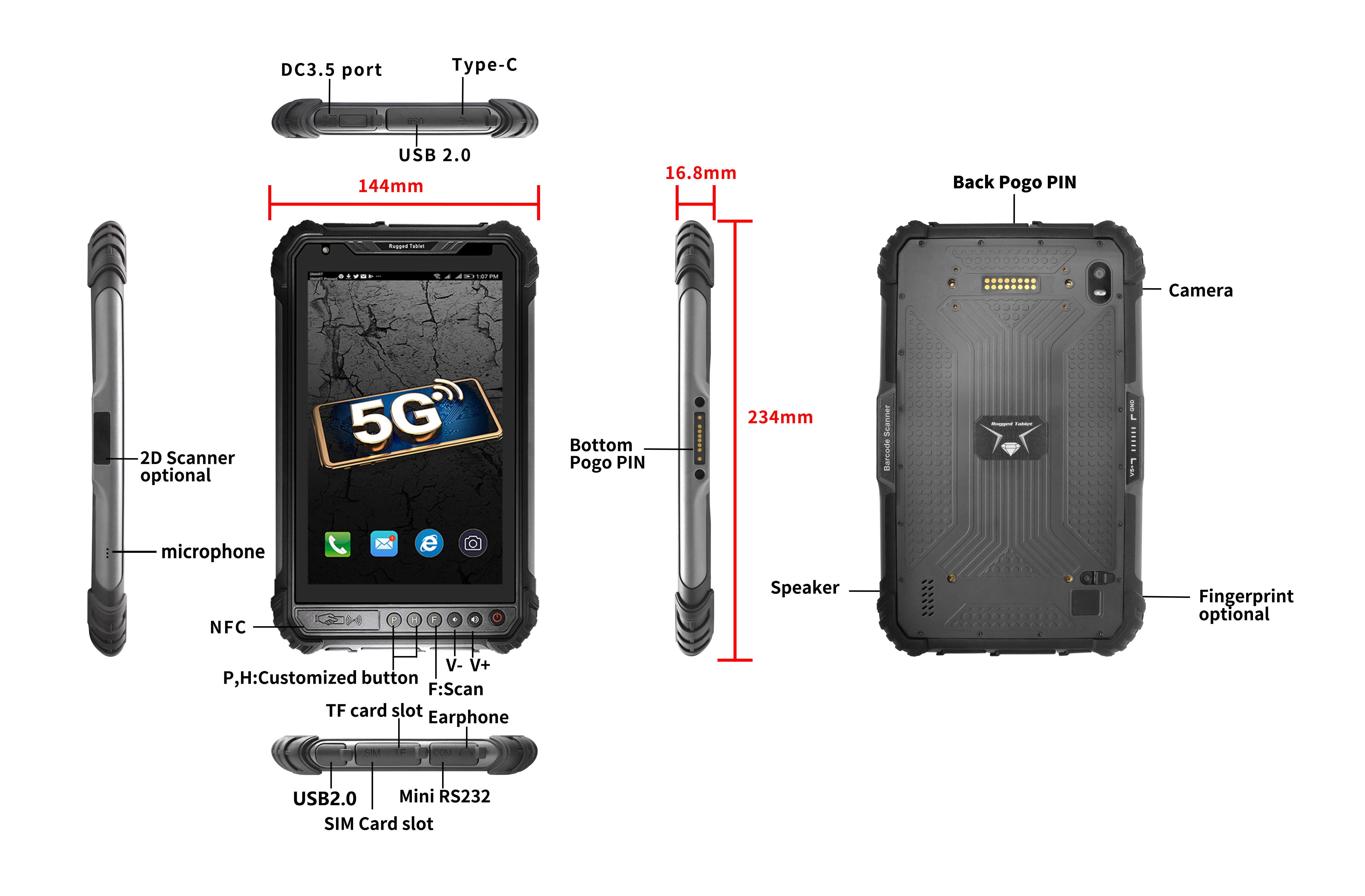

輸入/輸出介面	Type-C ×1（支援OTG）、SIM卡插槽×1、TF卡插槽×1、耳機孔×1、DC電源孔×1（3.5×15公厘）、USB 2.0 ×2、RS232介面×1（迷你USB）底部彈針介面：USB 2.0；充電；RS232 背部彈針介面：USB 2.0；RS232
一维/二维條碼	可選配：NLS-N1 / M1 / SE2707
超高頻RFID	M-500可選配：美規（902-928MHz，讀取距離3-5公尺）/ 歐規（865-868MHz，讀取距離3-5公尺） M-301可選配：美規（902-928MHz，讀取距離5-8公尺）/ 歐規（865-868MHz，讀取距離5-8公尺）
指紋識別	可選配：ZAZ-0A0 / 1020A
防護等級	IP65防塵防水，1.2公尺防跌落
認證	MIL-STD-810G、CE、FCC、3C
溫度	儲存：-40℃～60℃；工作：-20℃～55℃

應用場景

5G現場作業

長續航任務

IoT數據採集

?️

城市現場服務
