ST9-R2安卓12

  • 庫存:99999
  • Category:ST9 系列
$0$0

ST9-R2安卓堅固型平板電腦適用於重工業:重量輕,易於握持,適合生產線檢查/設備維護;國內供應鏈降低成本,支持批量部署;指紋+實名認證+軟硬件安全架構、IP65防護和耐用性使其成爲高性能、高性價比、國產的重工業可控移動終端。

立即購買 加入購物車
Share:
  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch

產品概述

ST9-R2A是一款8英寸堅固型平板電腦,採用Rockchip RK3588八核心處理器(4×[email protected] + 4×[email protected]),運行Android 12.0系統。具備靈活存儲組合(8GB/256GB、16GB/256GB 或 8GB/512GB、16GB/512GB 可選)、8英寸1200×1920 IPS顯示屏(標準版430nits、高亮度1000nits可選)、500萬像素前置/1300萬像素後置攝像頭(帶閃光燈)、5000mAh 7.7V電池、4G LTE網絡、WiFi 6及藍牙5.0。配備豐富介面(HDMI、USB 3.0×2)、IP65防護等級與擴展模組,為工業物聯網及多媒體應用提供高效能解決方案。

核心特性

  • Android 12.0系統,搭載Rockchip RK3588(4×[email protected] + 4×[email protected])八核心處理器
  • ARM Mali G610圖形處理器,8英寸1200×1920 IPS顯示屏(標準版430nits、高亮度1000nits可選)
  • 靈活存儲組合:8GB/256GB、16GB/256GB(8GB/512GB、16GB/512GB 可選)
  • 500萬像素前置 + 1300萬像素後置攝像頭(帶閃光燈),支援手寫筆/濕手觸控
  • 4G LTE(SLM770A模組)、WiFi 6(802.11ax)及藍牙5.0
  • IP65防塵防水等級,1.2米防跌落(符合MIL-STD-810G標準)
  • 豐富介面:HDMI、USB 3.0×2、USB 2.0×1、RS232、Type-C(OTG/快充)
  • 可選配備:UHF RFID(超高頻無線射頻識別,型號M-500/M-301)、1D/2D條碼掃描(NLS-N1/M1/SE2707)及指紋識別功能

技術規格 (ST9-R2A)

操作系統 Android 12.0
處理器 Rockchip RK3588(八核心;2.4GHz)- Cortex-A76×4 @2.4GHz、Cortex-A55×4 @1.8GHz
圖形處理器 ARM Mali G610
記憶體/存儲空間 8GB/256GB、16GB/256GB(8GB/512GB、16GB/512GB 可選)
顯示屏 8英寸IPS,1200×1920解析度;標準版430nits;高亮度1000nits 可選
觸控螢幕 10點觸控、支援手寫筆、支援濕手操作
攝像頭 前置:500萬像素;後置:1300萬像素(帶閃光燈)
電源與電池 5000mAh;7.7V(38.5Wh)
行動網絡 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66;LTE-TDD: B40;WCDMA: B1/B2/B4/B5/B8;GSM: 850/900/1800/1900
模組:SLM770A(北美地區為EC25-AUX)
衛星定位 北斗(BDS)、GPS、格洛納斯(GLONASS)
無線網絡 802.11a/b/g/n/ac/ax(2.4G/5G雙頻),支援無線熱點(Mobile AP);支援WiFi 6;WiFi/藍牙二合一
藍牙 5.0版本
近場通訊(NFC) 13.56 MHz,識別距離:1-3cm;支援ISO/IEC 14443A/B;ISO/IEC 15693協議
傳感器 光感應器、磁感應器、壓力傳感器、重力傳感器、距離傳感器、加速度傳感器、陀螺儀、震動馬達
尺寸 236×144×17.4mm
重量 700±50g

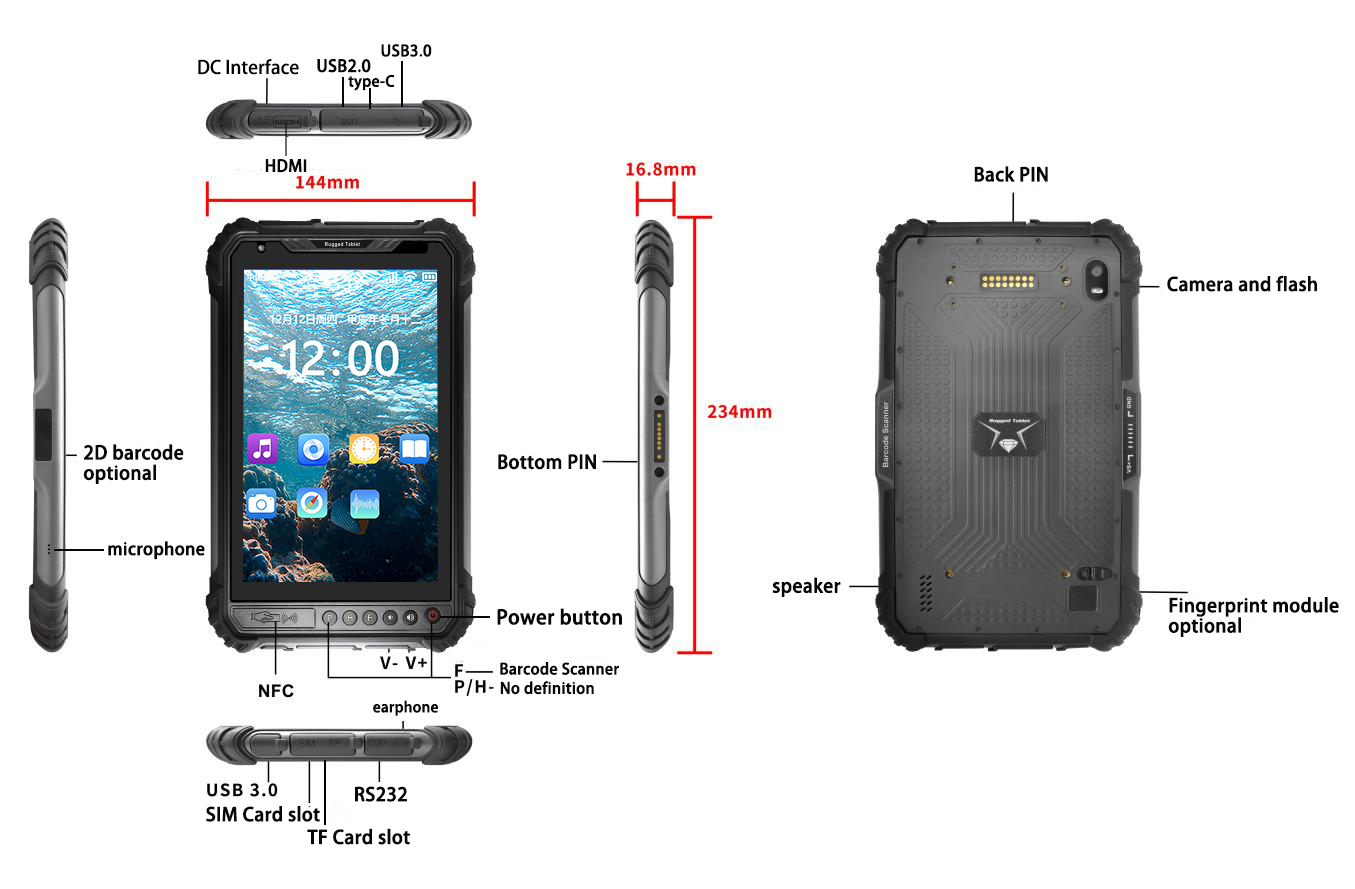

輸入/輸出介面 Type-C *1(OTG/快充)、SIM卡插槽*1、TF卡插槽*1、耳機介面*1、直流電源介面*1(4.0*15mm)、USB 2.0 *1、USB 3.0 *2、RS232*1(mini-USB介面)、HDMI*1
底部彈針介面:USB 2.0;充電;RS232
背部彈針介面:USB 2.0;RS232
1D/2D條碼掃描 可選:NLS-N1 / M1 / SE2707
超高頻無線射頻識別(UHF RFID) M-500 可選:美國規格(902-928MHz,識別距離3-5米)/ 歐洲規格(865-868MHz,識別距離3-5米)
M-301 可選:美國規格(902-928MHz,識別距離5-8米)/ 歐洲規格(865-868MHz,識別距離5-8米)
指紋識別 可選:ZAZ-0A0 / 1020A
防護等級 IP65防塵防水,1.2米防跌落
認證 MIL-STD-810G、CE、FCC、3C
溫度範圍 存儲:-40°C 至 60°C;工作:-20°C 至 55°C

應用場景

?
工業物聯網控制
?
多媒體顯示
?
物流與倉儲
?
現場維護
