ST9-M

  • 庫存:99999
  • Category:ST9 系列
$0$0

ST9-M被稱爲“工業全能動力”,適合物流/工業場景。擁有視窗+英特爾i5、高亮度顯示屏、全通信、IP65防護、抗衝擊、寬耐溫和可擴展功能,是您強大的工業工作夥伴。

立即購買 加入購物車
Share:
  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch

產品概述

ST9-M 是一款 8 英寸加固型平板電腦,搭載 Intel I5-8200Y 雙核心處理器(渦輪加速可達 3.90GHz),支援 Windows 10 Pro/Home/IoT、Windows 11 Pro 或 UbuntuKylin-20.04 作業系統。具備 TPM2.0 安全防護、彈性儲存空間(8GB/256GB 最高可達 16GB/1TB)、8 英寸 1200×1920 IPS 顯示螢幕(可選 1000 尼特高亮度)、5MP/13MP 雙鏡頭、5000mAh 7.7V 電池、4G LTE 網路連接功能及 IP65 防塵防水等級。配備 Intel UHD Graphics 615 顯示卡、豐富介面與可選高精密 GPS,為 Windows/Linux 工業及企業級應用提供高階穩定效能。

核心特性

  • 多系統支援:Windows 10/11 Pro/Home/IoT、UbuntuKylin-20.04,搭載 Intel I5-8200Y(1.30GHz,渦輪加速 3.90GHz)
  • TPM2.0 安全防護,Intel UHD Graphics 615 顯示卡強化圖形處理效能
  • 8 英寸 1200×1920 IPS 顯示螢幕(最高 400 尼特,可選 1000 尼特),支援觸控筆/濕手操作
  • 彈性儲存配置:8GB/256GB(可選 8GB+128GB eMMC/16GB/16GB+128GB eMMC/512GB/1TB)
  • 4G LTE 網路連接(SLM770A 模組),Intel Stone Peak 7265 無線網路/藍牙二合一模組
  • IP65 防塵防水,1.2 公尺耐摔(符合 MIL-STD-810G 軍規認證)
  • 豐富擴充介面:HDMI、USB 3.0×3、RS232、Pogopin 擴充埠,適用工業場景
  • 可選配功能:UHF RFID(M-500/M-301)、1D/2D 條碼掃描器、指紋辨識器及高精密 GPS

技術規格 (ST9-M)

作業系統 (OS) Windows 10 Pro(可選 Windows 10 Home/IoT、Windows 11 Pro、UbuntuKylin-20.04)
中央處理器 (CPU) Intel I5-8200Y(雙核心、四執行緒;1.30GHz)-渦輪加速可達 3.90GHz
顯示卡 (GPU) Intel® UHD Graphics 615
可信平台模組 (TPM) 支援 TPM2.0
記憶體 (RAM) 8GB(可選 8GB+128GB eMMC/16GB/16GB+128GB eMMC)
儲存空間 (ROM) 256GB(可選 512GB/1TB)
顯示螢幕 (LCD) 8 英寸 IPS 螢幕,解析度 1200×1920;最高 400 尼特;可選 800×1280 解析度 1000 尼特高亮度
觸控螢幕 (Touch Screen) 10 點觸控,支援觸控筆,支援濕手操作
相機 (Camera) 前鏡頭:5MP;後鏡頭:13MP
電源與電池 (Power and Battery) 5000mAh;7.7V;充電時間:約 3 小時;使用時間:6 小時 30 分鐘(音量 50%、亮度 60%、播放本機 1080P 影片)
行動網路 (WWAN) FDD-LTE:B1/B2/B3/B4/B5/B7/B8/B28;TDD-LTE:B40;WCDMA:B1/B2/B4/B5/B8;GSM/EDGE:B2/B3/B5/B8
模組:SLM770A(北美地區為 EC25-AUX)
衛星導航 (GPS) BDS、GPS、GLONASS(可選高精密 GPS:UM960)
無線網路 (WIFI) 802.11a/b/g/n/ac(2.4G/5G),無線熱點(Mobile AP);模組:Intel Stone Peak 7265(無線網路/藍牙二合一)
藍牙 (BLUETOOTH) 4.2 版本
近距離無線通訊 (NFC) 13.56 MHz,通訊距離:1-3cm;支援 ISO14443 TYPE A 協議
感應器 (Sensor) 光感應器、加速度感應器、重力感應器

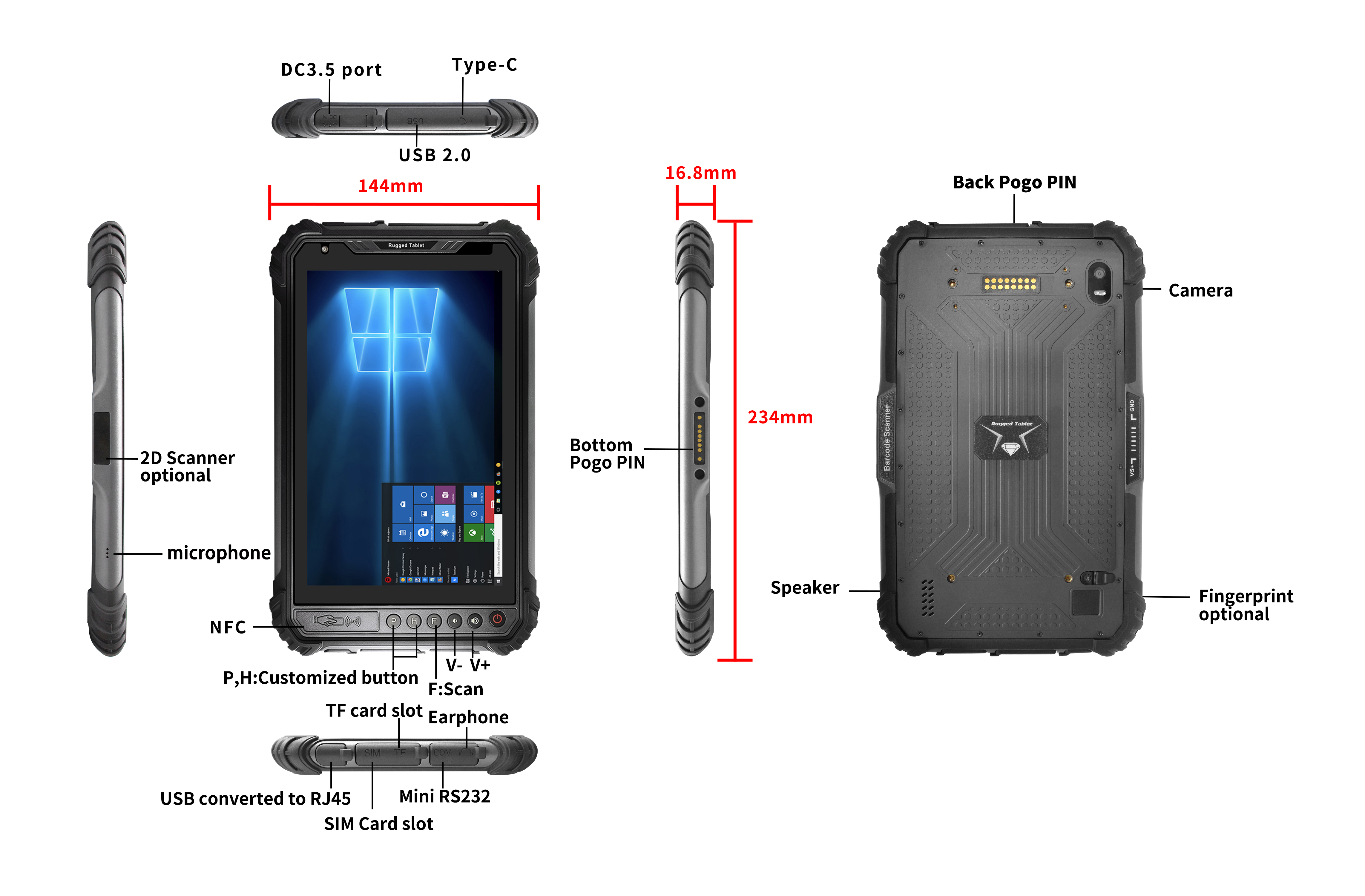

尺寸 (Size) 236×144×17.4mm
重量 (Weight) 700±50g
輸入/輸出介面 (Interface In/Out Port) HDMI×1、SIM 卡插槽×1、RS232×1(mini-USB 介面)、耳機孔×1、DC 電源孔×1(4.0×15mm)、USB 3.0×3
底部 Pogopin:USB 2.0;充電;RS232
背部 Pogopin:USB 2.0;RS232
1D/2D 條碼掃描器 (1D/2D Barcode) 可選:NLS-N1 / M1 / SE2707
UHF RFID 讀寫器 (UHF RFID) 可選 M-500:美國(902-928MHz,3-5 公尺)/歐盟(865-868MHz,3-5 公尺)
可選 M-301:美國(902-928MHz,5-8 公尺)/歐盟(865-868MHz,5-8 公尺)
指紋辨識器 (Fingerprint) 可選:ZAZ-0A0 / 1020A
防護等級 (Proof Degree) IP65 防塵防水,1.2 公尺耐摔
認證 (Certification) MIL-STD-810G、CE、FCC、3C
溫度範圍 (Temperature) 儲存環境:-40°C 至 60°C;操作環境:-20°C 至 55°C

應用場景

?️
高階工業控制
?
Linux 開發與物聯網
?
企業級安全應用
?️
專業現場服務
