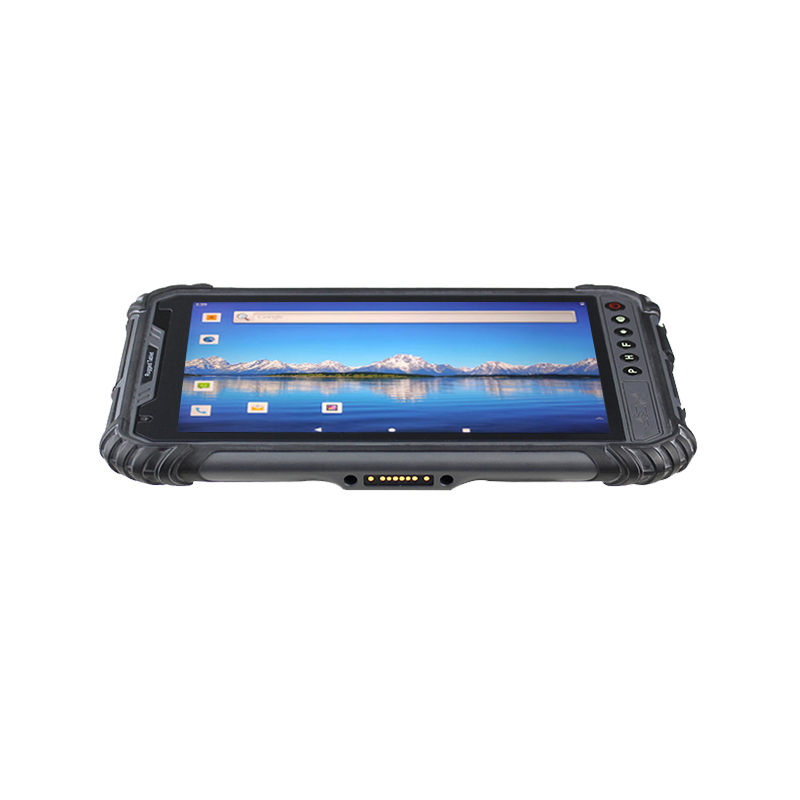

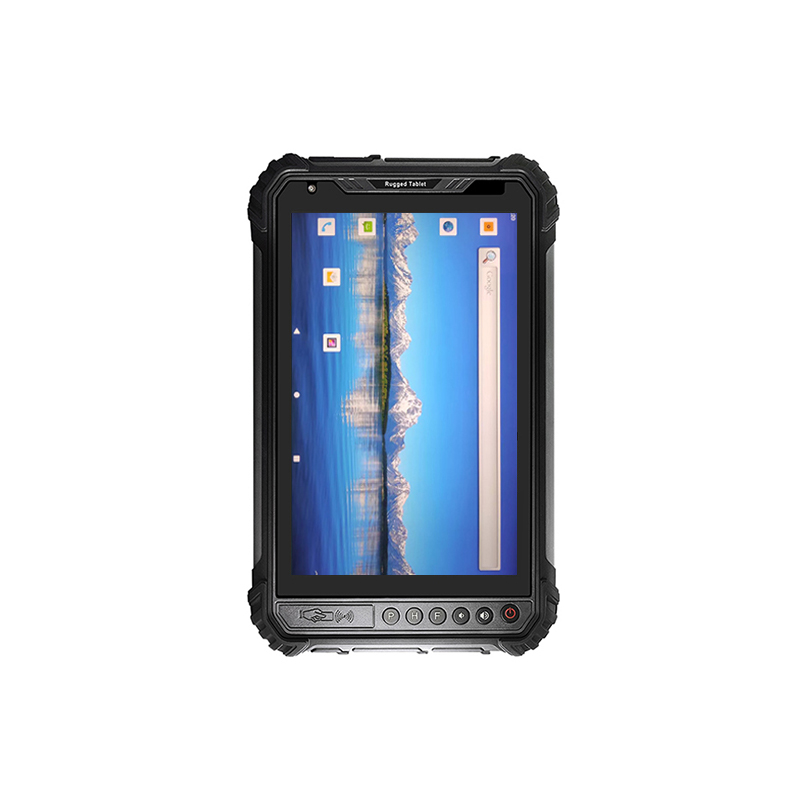

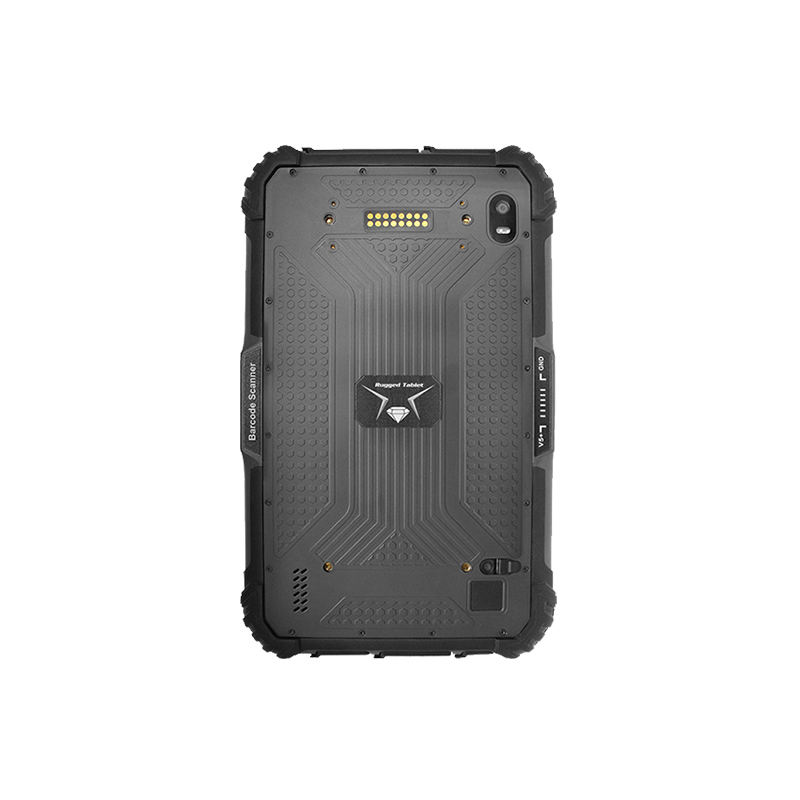

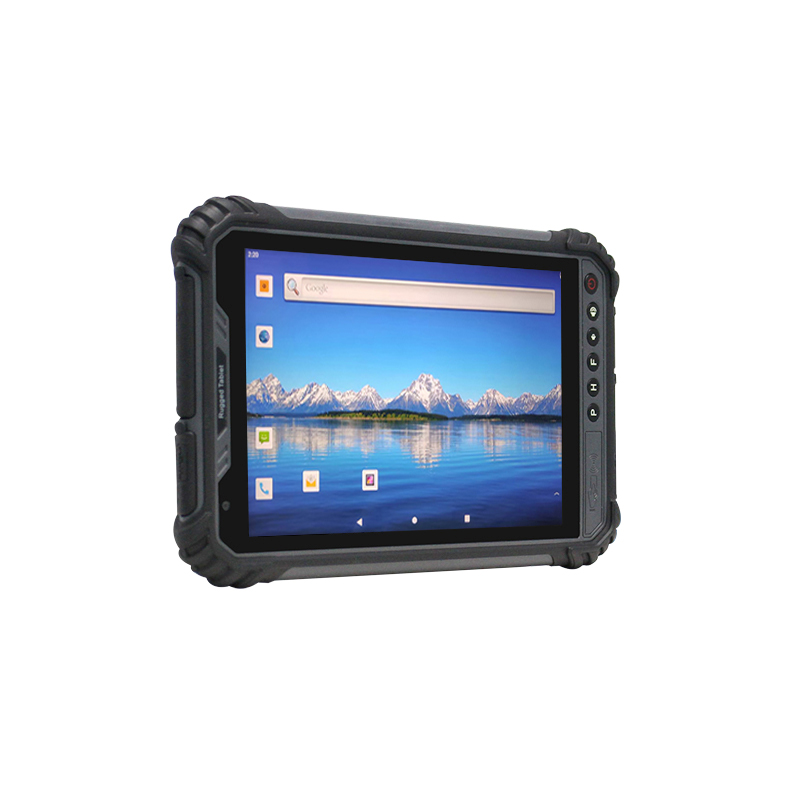

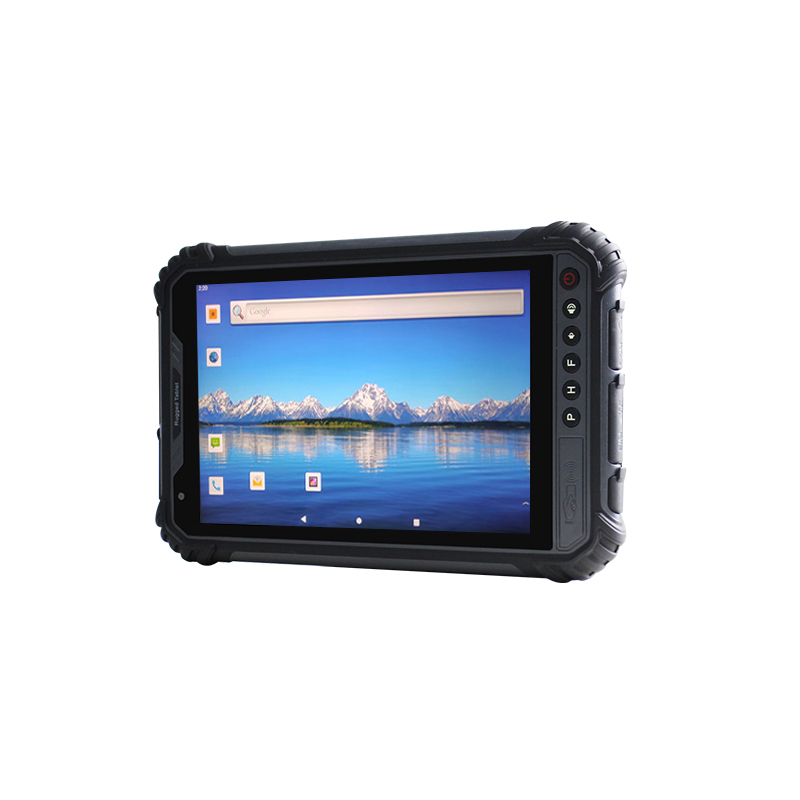

ST9-A5

  • 庫存:0
  • Category:ST9 系列
$0$20

ST9-A5 Android堅固型平板電腦面向重工業:重量輕,易於攜帶,用於生產線檢查/設備維護。它利用國內供應鏈降低成本,支持大規模部署,並擁有高清屏幕、10,000 mAh長電池壽命、IP65耐用性以及4G/WiFi/北斗連接——您的重工業高性價比、可靠的移動終端。

立即購買 加入購物車
Share:
  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch

產品概述

ST9-A5 是一款 8 英寸加固型平板電腦,搭載 MTK MT8788 八核心處理器,運行 Android 11.0 作業系統。配備 8 英寸 1200×1920 IPS 顯示螢幕(可選 1000 尼特高亮度)、彈性儲存配置(4GB/64GB 最高可達 8GB/256GB)、10000mAh 大容量電池(續航力長達 29 小時)、IP65 防塵防水等級及 1.2 公尺耐摔設計。內建豐富感應器與多模式連接功能,並可選配 1D/2D 條碼掃描、UHF RFID 及指紋辨識等模組,是工業、物流及現場作業場景的理想選擇。

核心特性

  • 搭載 MTK MT8788 八核心處理器(2.0GHz,八執行緒),預載 Android 11.0 作業系統
  • 8 英寸 1200×1920 IPS 顯示螢幕,可選 1000 尼特高亮度,支援觸控筆/濕手操作
  • 彈性儲存配置:4GB/64GB(可選 6GB/128GB、8GB/256GB)
  • 10000mAh 大容量電池(續航力 29 小時),具備 IP65 防護等級與 1.2 公尺耐摔性
  • 全方位連接功能:4G 多頻段、雙頻 Wi-Fi、藍牙 4.2、NFC
  • 豐富感應器:光感應器、磁力感應器、壓力感應器、G 感應器、陀螺儀等
  • 可選配 UHF RFID(M-500/M-301,讀取距離 3-8 公尺)、1D/2D 條碼掃描器及指紋辨識
  • 多元擴充介面:Type-C、USB 2.0×2、RS232、Pogopin 擴充埠

技術規格 (ST9-A5)

作業系統 (OS)Android 11.0
中央處理器 (CPU)MTK MT8788(八核心,八執行緒;2.0GHz)
顯示卡 (GPU)ARM Mali-G72 MP3
記憶體/儲存空間 (RAM/ROM)4GB/64GB(可選 6GB/128GB、8GB/256GB)
顯示螢幕 (LCD)8 英寸 IPS 螢幕,解析度 1200×1920;300 尼特(典型值)、390 尼特(最大值);可選 800×1280 解析度 1000 尼特高亮度
觸控螢幕 (Touch Screen)10 點觸控,支援觸控筆,支援濕手操作
相機 (Camera)前鏡頭:5MP;後鏡頭:13MP(含閃光燈)
電源與電池 (Power and Battery)10000mAh;3.8V;充電時間:約 6 小時;使用時間:約 29 小時(音量 50%、亮度 60%、播放本機 1080P 影片)
行動網路 (WWAN)TDD_LTE:B34/B38/B39/B40/B41/B66;FDD_LTE:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28;WCDMA:B1/B2/B4/B5/B8;CDMA2000:BC0;TD-SCDMA:B34/B39;GSM:850/900/1800/1900
衛星導航 (GPS)BDS、GPS、GLONASS(Wi-Fi/藍牙/GPS 三合一模組:MT6631N)
無線網路 (WIFI)802.11a/b/g/n/ac(2.4G/5G),無線熱點(Mobile AP)
藍牙 (BLUETOOTH)4.2 版本
近距離無線通訊 (NFC)13.56 MHz,通訊距離:1-3cm;支援 ISO/IEC 14443A/B、ISO/IEC 15693 協議
感應器 (Sensor)光感應器、磁力感應器、壓力感應器、G 感應器、距離感應器、加速度感應器、陀螺儀、震動馬達

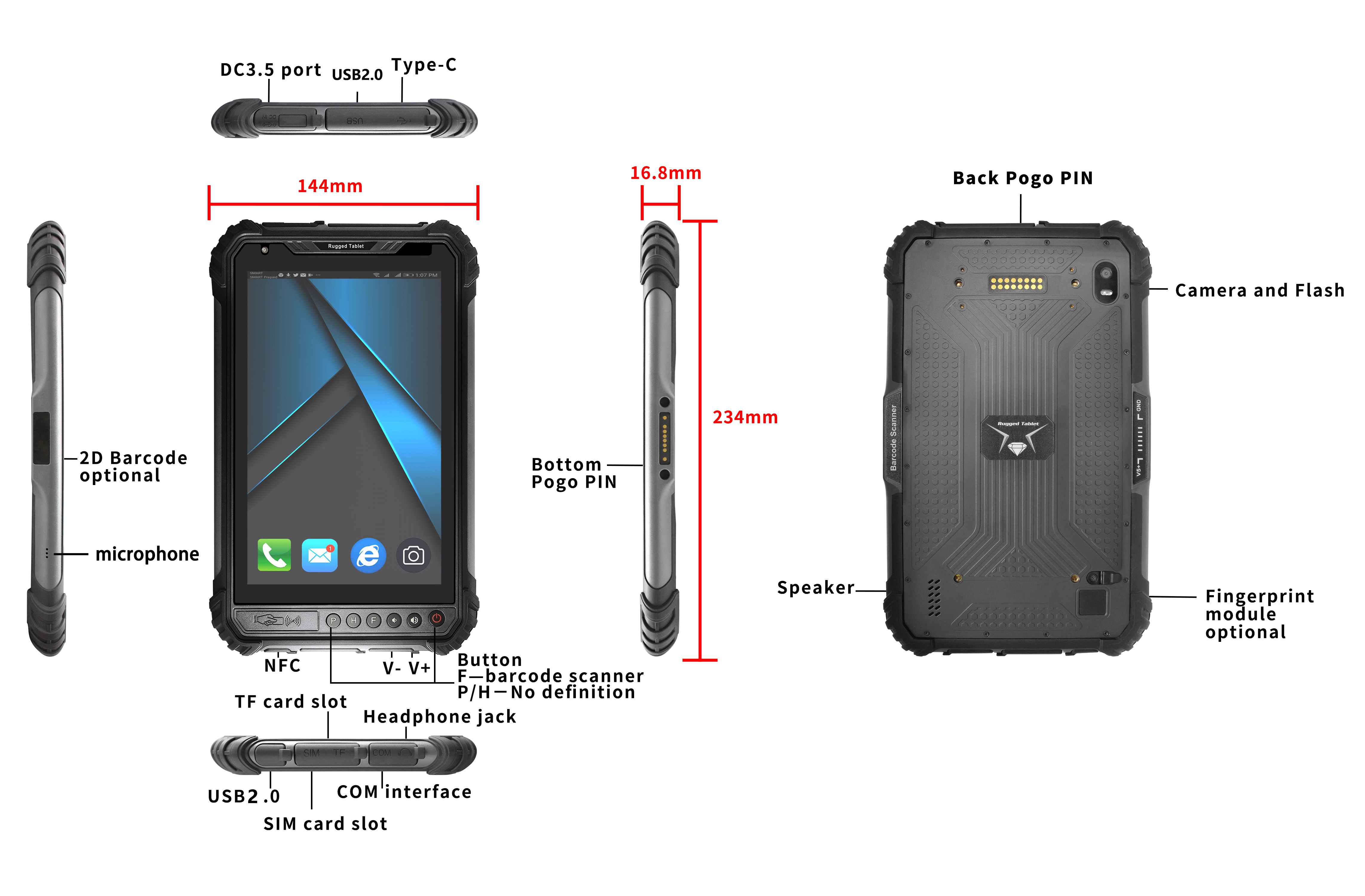

尺寸 (Size)236×144×17.4mm
重量 (Weight)630±20g
輸入/輸出介面 (Interface In/Out Port)Type-C ×1(支援 OTG)、SIM 卡插槽×1、TF 記憶卡插槽×1、耳機孔×1、DC 電源孔×1(3.5×15mm)、USB 2.0 ×2、RS232×1(mini-USB 介面)
底部 Pogopin:USB 2.0;充電;RS232
背部 Pogopin:USB 2.0;RS232
1D/2D 條碼掃描器 (1D/2D Barcode)可選:NLS-N1 / M1 / SE2707
UHF RFID 讀寫器 (UHF RFID)可選 M-500:美國(902-928MHz,3-5 公尺)/歐盟(865-868MHz,3-5 公尺)
可選 M-301:美國(902-928MHz,5-8 公尺)/歐盟(865-868MHz,5-8 公尺)
指紋辨識器 (Fingerprint)可選:ZAZ-0A0 / 1020A
高精密 GPS (High Precision GPS)可選:UM960
單一北斗模組 (Single Beidou module)可選:ATGM332D-6N
防護等級 (Proof Degree)IP65 防塵防水,1.2 公尺耐摔
認證 (Certification)MIL-STD-810G(軍規標準)、CE、FCC、3C
溫度範圍 (Temperature)儲存環境:-40°C 至 60°C;操作環境:-20°C 至 55°C

應用場景

?
工業自動化
?
物流倉儲
?
現場服務
?
設備維護
