ST8-W

  • 庫存: 0
  • Category: ST8 系列
$0 $18

ST8-W是一款運行Windows 10的堅固耐用的工業平板電腦,它具有8英寸HD屏幕、IP65防護和1.2米耐跌落性,使其適用於物流、工業和其他場景。
支持4G/WiFi通信,可選二維條碼掃描,-20℃至55℃穩定運行,是行業應用的可靠便攜式終端。

立即購買 加入購物車
  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch

產品概述

ST8-W 是一款8吋加固型平板電腦,搭載 Intel Cherry Trail Z8350 四核處理器,運行 Windows 10 作業系統(家用版/專業版/IoT版可選)。配備8吋 1200×1920 解析度IPS顯示螢幕、4GB記憶體/64GB儲存空間,具備IP65防塵防水等級、1.2公尺防跌落保護,並支援4G LTE、雙頻Wi-Fi、藍牙4.2及近場通訊(NFC)等多元連接模式。可選配一維/二維條碼、超高頻RFID(M-500/M-301)及指紋辨識模組,專為需兼容Windows生態系統、具備惡劣環境適應能力與靈活擴充性的工業應用場景設計。

核心特色

  • 搭載Windows 10(家用版/專業版/IoT版可選),配備Intel Cherry Trail Z8350處理器(渦輪加速最高可達1.92GHz)
  • 8吋 1200×1920解析度IPS顯示螢幕,支援十點觸控、手寫筆操作及濕手觸控
  • IP65防塵防水等級、1.2公尺防跌落保護,符合MIL-STD-810G軍規認證
  • 7800mAh高容量電池,工作溫度範圍達-20°C~55°C
  • 豐富連接能力:4G LTE(SLM770A/EC25-AUX模組)、Wi-Fi 802.11a/b/g/n/ac、藍牙4.2、近場通訊(NFC)
  • 可選配超高頻RFID(M-500/M-301),讀取距離3-8公尺(符合美/歐規範)
  • 多元介面:HDMI、RS232、USB 3.0×2/2.0×1、彈簧針(pogopin)擴充介面
  • 支援一維/二維條碼(NLS-N1/M1/SE2707)及指紋辨識(ZAZ-0A0/1020A)模組

技術規格 (ST8-W)

作業系統 (OS)Windows 10(家用版/專業版/IoT版可選)
中央處理器 (CPU)Intel Cherry Trail Z8350(四核四執行緒;基礎頻率1.44GHz,渦輪加速最高1.92GHz)
圖形處理器 (GPU)Intel HD Graphics 400
記憶體/儲存空間 (RAM/ROM)4GB/64GB
液晶螢幕 (LCD)8吋IPS面板,解析度1200×1920
觸控螢幕 (Touch Screen)十點觸控,支援手寫筆、濕手操作
相機 (Camera)前鏡頭:200萬畫素;後鏡頭:500萬畫素
電源與電池 (Power and Battery)7800mAh;電壓3.8V
無線廣域網路 (WWAN)時分雙工長期演進技術 (TDD-LTE):B40;頻分雙工長期演進技術 (FDD-LTE):B1/B2/B3/B4/B5/B7/B8/B28;寬頻分碼多重存取 (WCDMA):B1/B2/B4/B5/B8;全球行動通訊系統 (GSM):B2/B3/B5/B8
模組:SLM770A(北美地區為EC25-AUX)
衛星定位 (GPS)北斗、GPS、格洛納斯(可選配高精度GPS:UM960)
無線區域網路 (WIFI)802.11a/b/g/n/ac(2.4G/5G雙頻),支援無線基地台 (AP)
模組:Intel Stone Peak 3165(Wi-Fi/藍牙二合一)
藍牙 (BLUETOOTH)4.2版本
近場通訊 (NFC)頻率13.56 MHz,讀取距離1-3公分,符合ISO14443 TYPE A標準

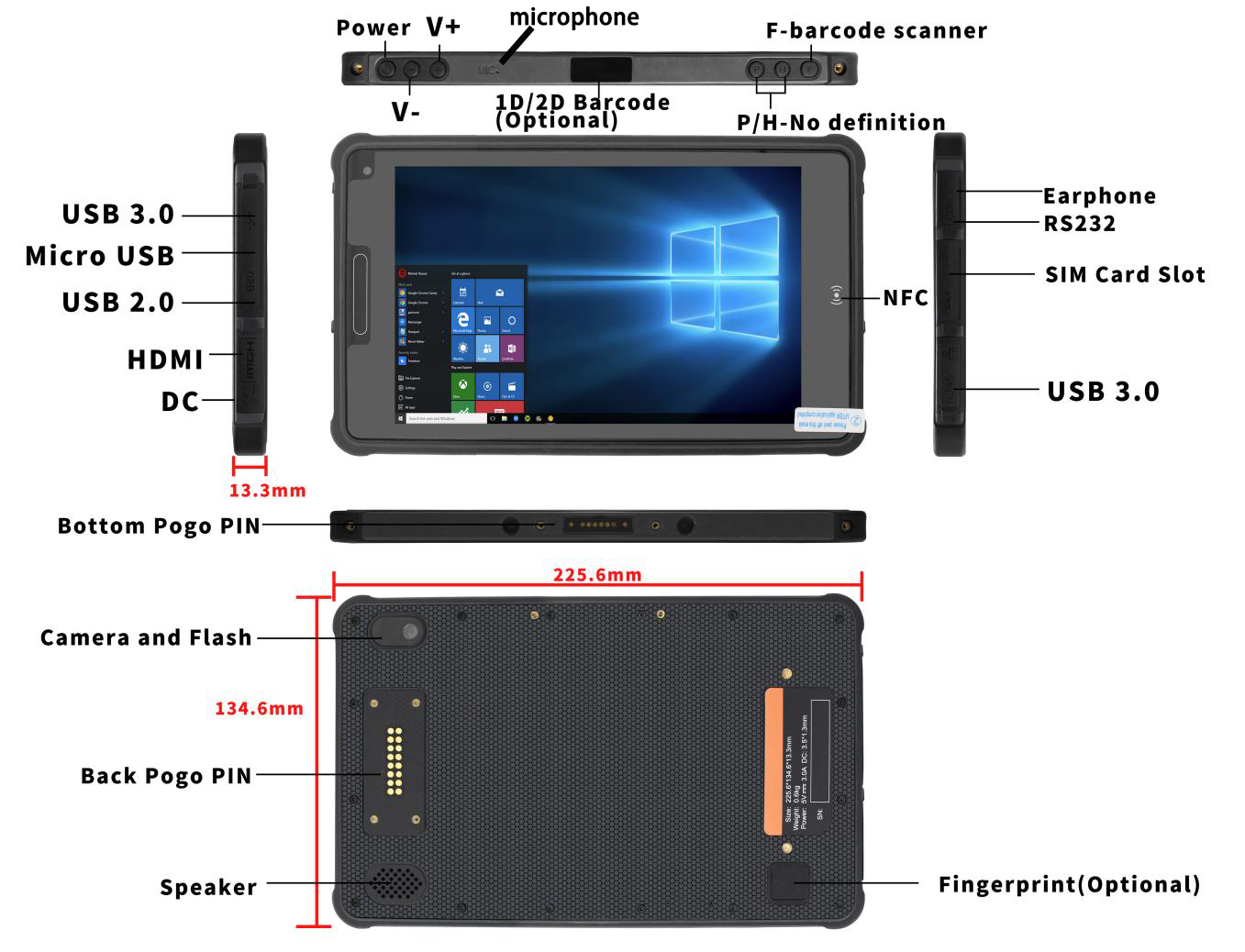

輸入/輸出介面 (Interface In/Out Port)HDMI×1、SIM卡插槽×1、RS232×1(mini-USB介面)、耳機孔×1、直流電源孔×1(3.5×12mm)、USB-A:USB 3.0×2 + USB 2.0×1
底部彈簧針:USB 2.0、充電、RS232
背部彈簧針:USB 2.0、RS232
一維/二維條碼 (1D/2D Barcode)可選配:NLS-N1 / M1 / SE2707
超高頻RFID (UHF RFID)可選配M-500:美規(902-928MHz)/歐規(865-868MHz),讀取距離3-5公尺
可選配M-301:美規(902-928MHz)/歐規(865-868MHz),讀取距離5-8公尺
指紋辨識 (Fingerprint)可選配:ZAZ-0A0 / 1020A
防護等級 (Proof Degree)IP65防塵防水,1.2公尺防跌落
溫度範圍 (Temperature)儲存溫度:-40°C 至 60°C;工作溫度:-20°C 至 55°C

應用場景

?
工業控制
?
物流管理
?️
現場巡檢
?
零售盤點
