ST11-R2 HarmonyOS 4.1

  • 庫存:99999
  • Category:ST11 系列
$0$0

適用於物流、零售等場景,搭載HarmonyOS系統和強大處理器,10.1英寸屏幕清晰流暢,高效5G/WiFi6連接;大電池提供持久續航,IP65防護抵禦複雜環境,支持功能擴展,成爲各行業耐用的智能夥伴。

立即購買 加入購物車
Share:
  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch

產品概述

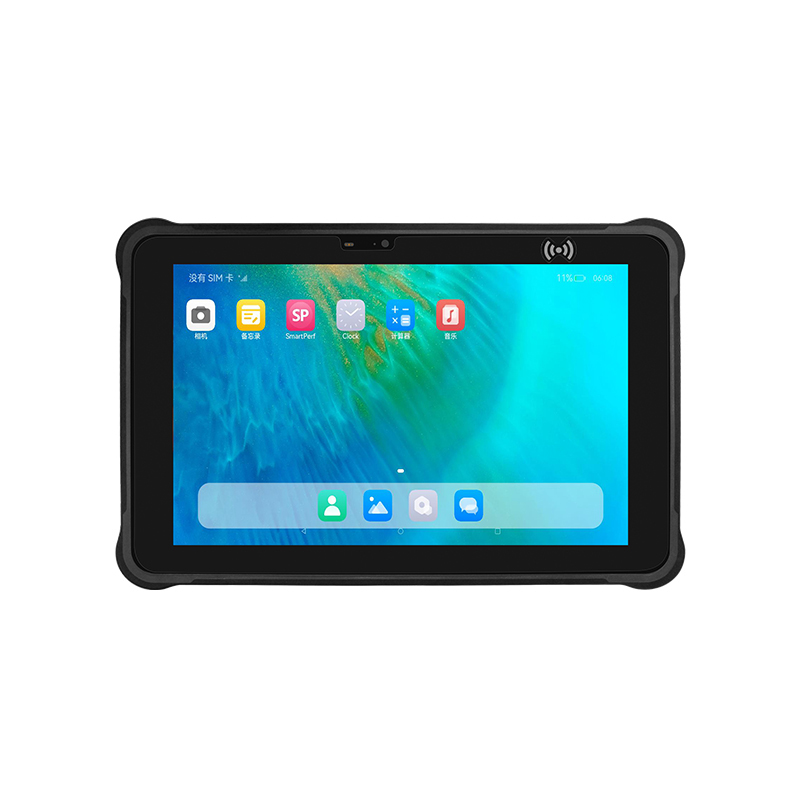

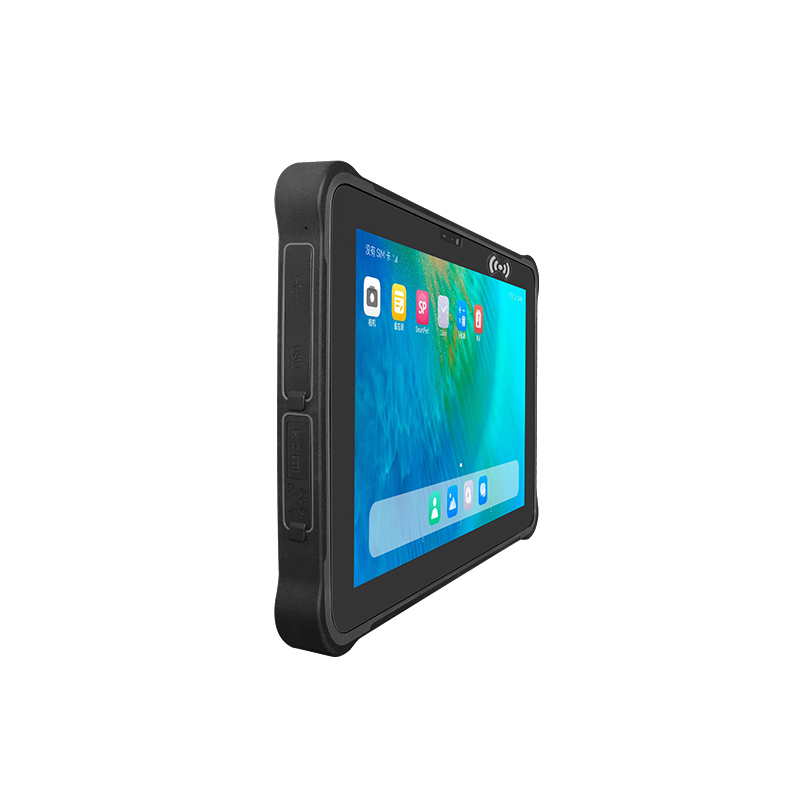

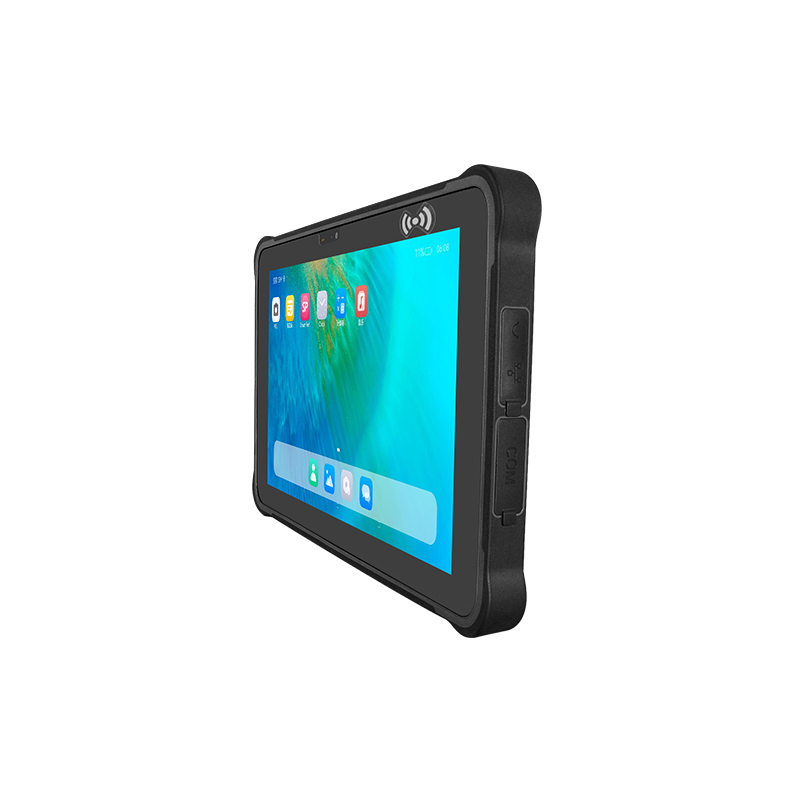

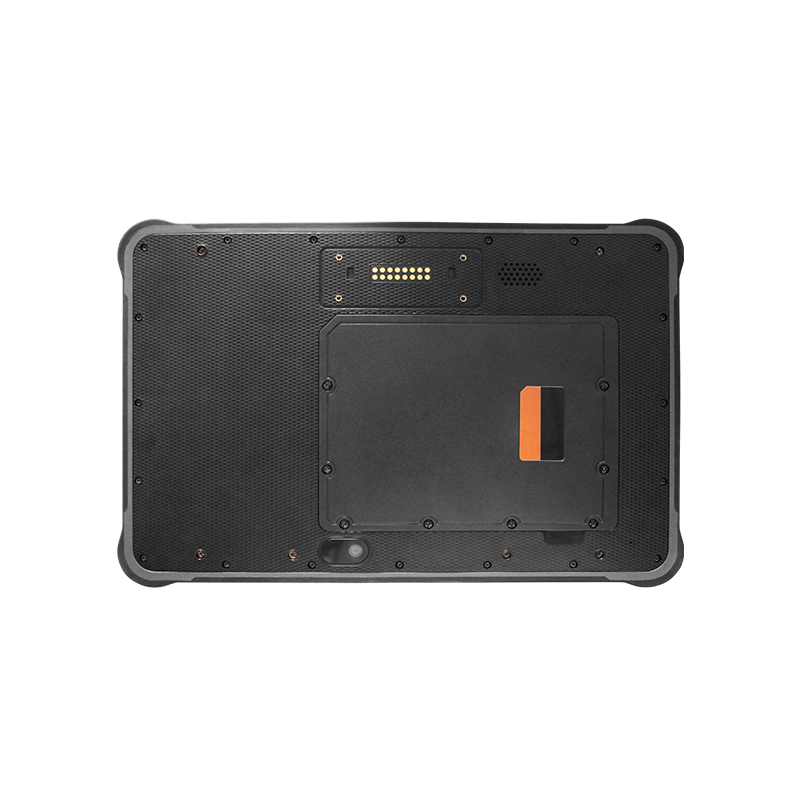

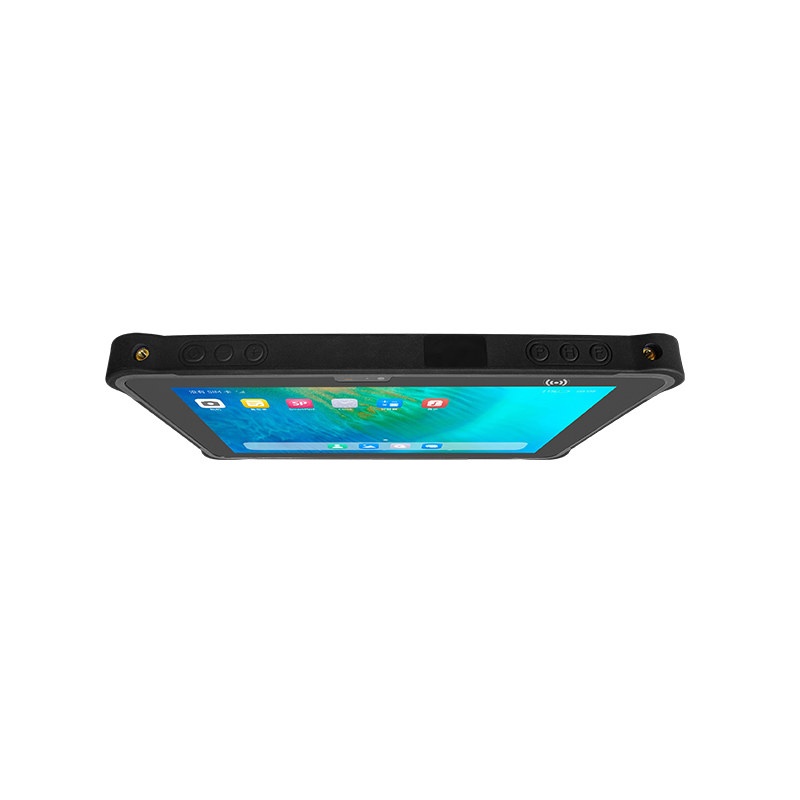

ST11-R2H是一款10.1英寸堅固型平板電腦,搭載瑞芯微Rockchip RK3588八核處理器(4×[email protected] + 4×[email protected]),運行開源鴻蒙OS 4.1作業系統。配備8GB/256GB或16GB/256GB儲存組合(可選8GB/512GB、16GB/512GB)、10.1英寸1200×1920解析度IPS顯示螢幕(450尼特亮度)、500萬畫素前置/1300萬畫素後置攝像頭(配備閃光燈)、6000mAh 7.6V大容量電池,支援4G網路、WiFi 6、藍牙5.0及NFC功能。具備Type-C(支援OTG與快充)、HDMI、USB 3.0、RJ45網口、RS232等豐富介面與IP65防護等級,專為鴻蒙生態工業應用場景最佳化設計。

核心特性

  • 開源鴻蒙OS 4.1作業系統,搭載瑞芯微Rockchip RK3588八核處理器(4×[email protected] + 4×[email protected]
  • ARM Mali G610圖形處理器,10.1英寸1200×1920 IPS顯示螢幕,10點觸控並支援手寫筆與濕手操作
  • 8GB/256GB或16GB/256GB儲存配置(可選8GB/512GB、16GB/512GB),6000mAh 7.6V電池(充電時間4小時)
  • 500萬畫素前置 + 1300萬畫素後置攝像頭(配備閃光燈),內建陀螺儀、氣壓感測器等完整感測器套件
  • 4G多頻段連接(SLM770A模組),支援WiFi 6、藍牙5.0及13.56MHz NFC近場通訊
  • 豐富介面配置:HDMI、USB 3.0、USB 2.0、RJ45網口、RS232、Type-C(支援OTG與快充)、雙彈針連接器
  • IP65防塵防水等級、1.2公尺防跌落保護,通過MIL-STD-810G認證,可選配條碼掃描器
  • 可選配件:Type-C 65W快充充電器、磁吸鍵盤及專用車載支架

技術規格 (ST11-R2H)

作業系統 開源鴻蒙OS 4.1
中央處理器 瑞芯微Rockchip RK3588(八核;2.4GHz)
Cortex-A76×4 @2.4GHz、Cortex-A55×4 @1.8GHz
圖形處理器 ARM Mali G610
記憶體/儲存空間 8GB/256GB、16GB/256GB
8GB/512GB、16GB/512GB(可選)
液晶顯示螢幕 10.1英寸;解析度1200×1920;亮度450尼特;IPS面板
觸控螢幕 10點觸控
支援手寫筆;支援濕手操作
攝像頭 前置:500萬畫素;後置:1300萬畫素(配備閃光燈)
電源與電池 6000mAh / 7.6V直流電(45.6瓦時)
充電時間:約4小時
使用時間:8小時30分鐘(音量50%、亮度60%、播放本地1080P影片)
無線廣域網路 FDD-LTE:B1/B2/B3/B4/B5/B7/B8/B28/B66
TDD-LTE:B40
WCDMA:B1/B2/B4/B5/B8
GSM:850/900/1800/1900
模組:SLM770A
衛星定位 GPS
無線區域網路 802.11a/b/g/n/ac/ax無線網路;支援無線熱點(行動熱點);2.4G、5G雙頻;支援WiFi 6
WiFi/藍牙二合一模組
藍牙 5.0版本
近場通訊 13.56 MHz,讀取距離:1-3公分;支援ISO/IEC 14443A/B協議;支援ISO/IEC 15693協議
麥克風 靈敏度:-32±2分貝;輸出阻抗:2.2千歐姆 ×1
揚聲器 8歐姆 1.5瓦
感測器 光感測器、磁力感測器、氣壓感測器、重力感測器、距離感測器、加速度感測器、陀螺儀、震動馬達
尺寸 268.9×176.8×18公厘
重量 1150±50公克
語言 多語言支援

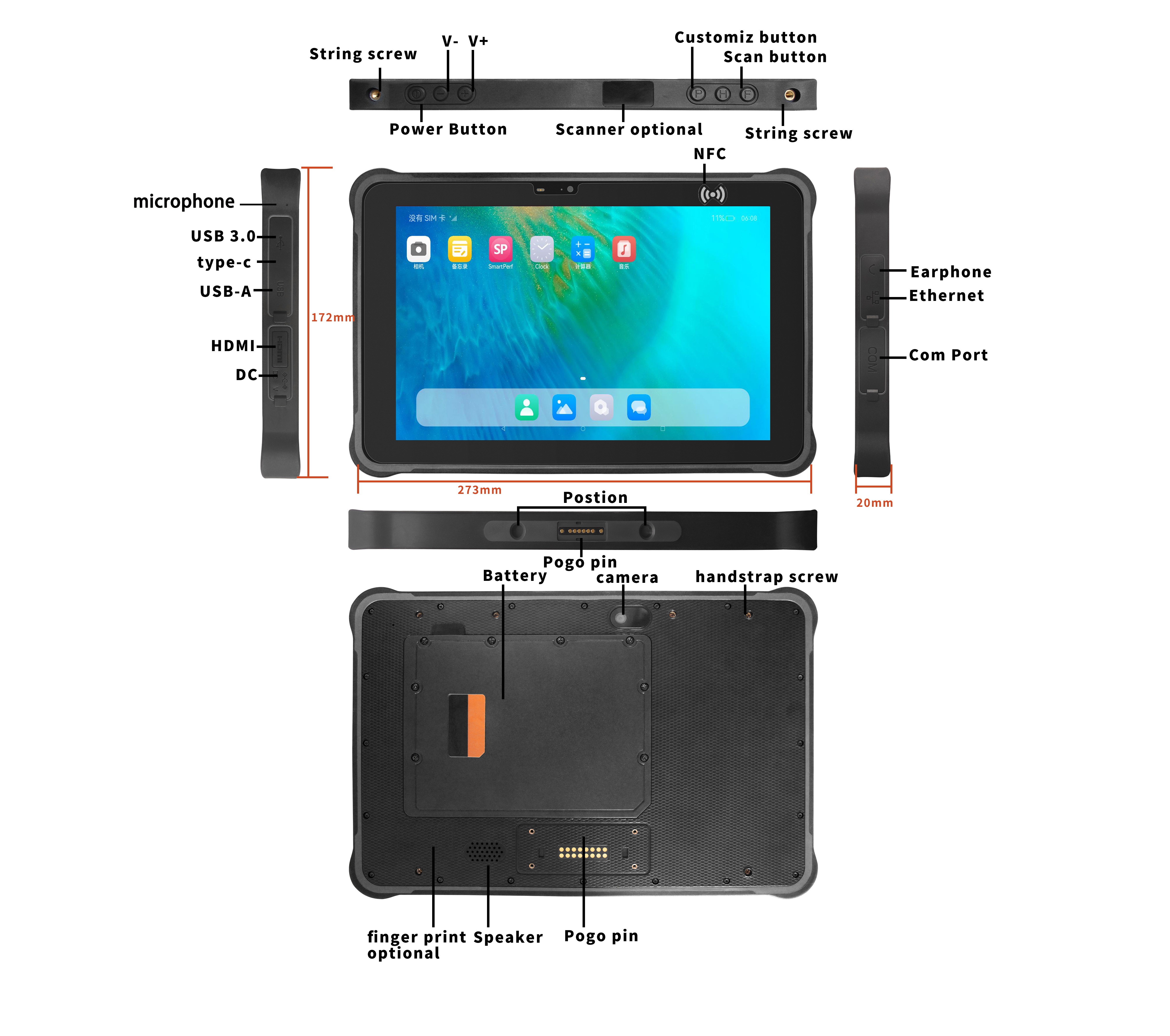

輸入/輸出介面 Type-C ×1(支援OTG;支援快充);SIM卡插槽×1;TF卡插槽×1;耳機孔×1;DC電源孔×1(4.0×15公厘);USB-A介面:USB 2.0 ×1 + USB 3.0 ×1;RJ45網口×1;RS232介面×1;HDMI×1

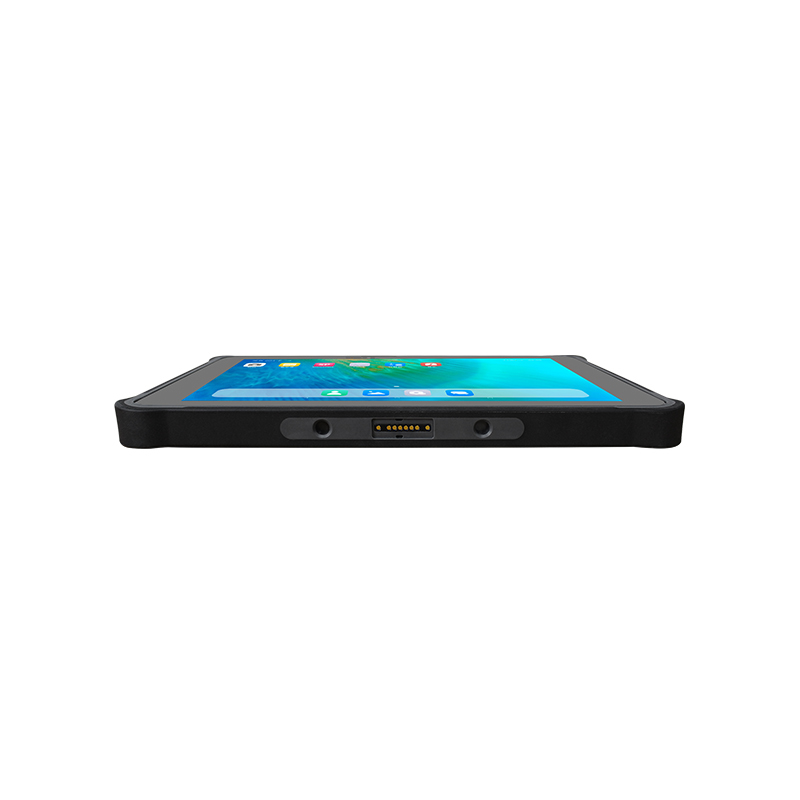

底部彈針介面:USB 2.0;充電;RS232
背部彈針介面:USB 2.0;RS232
按鍵 音量加/減鍵、電源鍵、「F」鍵(用於條碼掃描)
自訂按鍵:P鍵、H鍵(預設無功能)
一维/二维條碼 可選配:Honeywell N4680條碼掃描模組
配件 包裝盒;DC充電器(12V 4A);背帶;螺絲;腕帶;螺絲起子
可選配件:擴充底座;車載支架STA15;車載支架STA03;Type-C 65W快充充電器;磁吸鍵盤
多媒體(硬體解碼) 圖片檢視:支援BMP、JPG、GIF、PNG格式
影片格式:支援MPEG 1/2/4、H.263/H.264、RMVB、WMV/VC-1、MVC、AVS、MJPEG(最高支援1080P)
音訊格式:支援MP3、WMA、WAV、OGG、FLAC、ALAC、APE、AAC、AC-3、DTS(需授權)
防護等級 IP65防塵防水,1.2公尺防跌落
認證 MIL-STD-810G;CE、FCC、3C
溫度 儲存溫度:-40℃~60℃;工作溫度:-20℃~55℃

應用場景

?
鴻蒙生態應用
?
工業物聯網系統
?
快充型現場作業
?
多設備協同工作
