SH6

  • 在庫存:9999
  • Category:移動手持
$900 $750

工業用堅固的視窗11手持終端。英特爾N100處理器,6.5英寸屏幕,5000mAh長電池。集成2D掃描、NFC、北斗/GPS。IP65保護,1.2m防跌落,-20°C~55°C操作。完全連接,工業軟件兼容,靈活擴展。物流、倉儲和現場操作的理想選擇。

立即購買 加入購物車
Share:
  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch

產品概述

SH6 是一款 6.5 吋堅固型手持終端,搭載 Intel N100 四核心處理器(1.8GHz,渦輪加速可達 3.4GHz),運行 Windows 11 Pro 作業系統(亦可選配 Home/IoT 版本)。此產品具備可擴充儲存組合(8GB/256GB、8GB/512GB、16GB/256GB、16GB/512GB 可選)、6.5 吋 720×1600 解析度顯示螢幕(380 尼特亮度)、前 500 萬畫素/後 800 萬畫素鏡頭、5000mAh 7.6V 電池、4G LTE 行動網路連接能力(北美地區採用 SLM770A/EC25-AUX 模組)、Intel® WiFi 6 AX201 無線網路及藍牙 5.2。產品具備 IP65 防塵防水等級、1.2 公尺防掉落能力、雙 USB 3.0 介面、全功能 Type-C 介面(20W 快充)與多元條碼掃描選項,專為次世代 Windows 11 可攜式工業數據採集與行動化工作流程設計。

核心特色

  • 支援 Windows 11 Pro/Home/IoT 作業系統(可選),搭載 Intel N100 處理器(四核心、1.8GHz/渦輪加速 3.4GHz)及 UHD Graphics 24 EUs 顯示核心
  • 彈性儲存組合選項(8GB/256GB 至 16GB/512GB),有效提升 Windows 11 運行效能
  • 6.5 吋 720×1600 解析度顯示螢幕(380 尼特),支援 10 點觸控,帶來直覺式行動操作體驗
  • 5000mAh 7.6V 電池配置,3 小時快充完成,影片播放續航可達 4.5 小時
  • 全球 4G LTE 連網能力(SLM770A/EC25-AUX 模組)、Intel WiFi 6 AX201、藍牙 5.2 及近場通訊(NFC)
  • 多元條碼掃描選項(NLS-N1、Zebra SE5500/SE4710/SE655),滿足多元數據採集需求
  • IP65 防塵防水等級、1.2 公尺防掉落能力,緊湊設計(178.3×83×23mm/460g)
  • 雙 USB 3.0 介面、全功能 Type-C 介面(20W 快充)、8PIN 彈簧針介面(擴充專用)

技術規格 (SH6)

作業系統 Windows 11 Pro
Home / IoT 版本可選
中央處理器 Intel N100(四核心、四執行緒;1.8GHz)
渦輪加速可達 3.4GHz
顯示核心 UHD Graphics (24 EUs)
記憶體/儲存空間 8GB/256GB
可選配 8GB/512GB、16GB/256GB、16GB/512GB
液晶螢幕 6.5 吋;解析度 720×1600;亮度 380 尼特
觸控螢幕 10 點觸控
鏡頭 前鏡頭:500 萬畫素;後鏡頭:800 萬畫素
電源與電池 5000mAh;7.6V
充電時間:約 3 小時
使用時間:4 小時 30 分鐘(音量 50%、亮度 60%、播放本地 1080P 影片)
行動寬頻 FDD_LTE:B1/B2/B3/B4/B5/B7/B8/B28;TDD_LTE:B40
WCDMA:B1/B2/B4/B5/B8;GSM:B2/B3/B5/B8
模組:SLM770A(北美地區為 EC25-AUX)
衛星定位 北斗、GPS、格洛納斯
無線網路 802.11a/b/g/n/ac/ax 無線網路;支援無線 AP(行動 AP);2.4G、5G 雙頻
Intel® Wi-Fi 6 AX201(WiFi/藍牙二合一)
藍牙 5.2 版本
近場通訊 13.56 MHz,感應距離:1-3 公分;支援 ISO14443 TYPE A 協定
麥克風 靈敏度:-32±2d;輸出阻抗:2.2kΩ×1
揚聲器 8Ω 1.0 瓦
感應器 光感應器、重力感應器、加速度感應器
尺寸 178.3×83×23 公釐
重量 460±20 公克
語言 多國語言

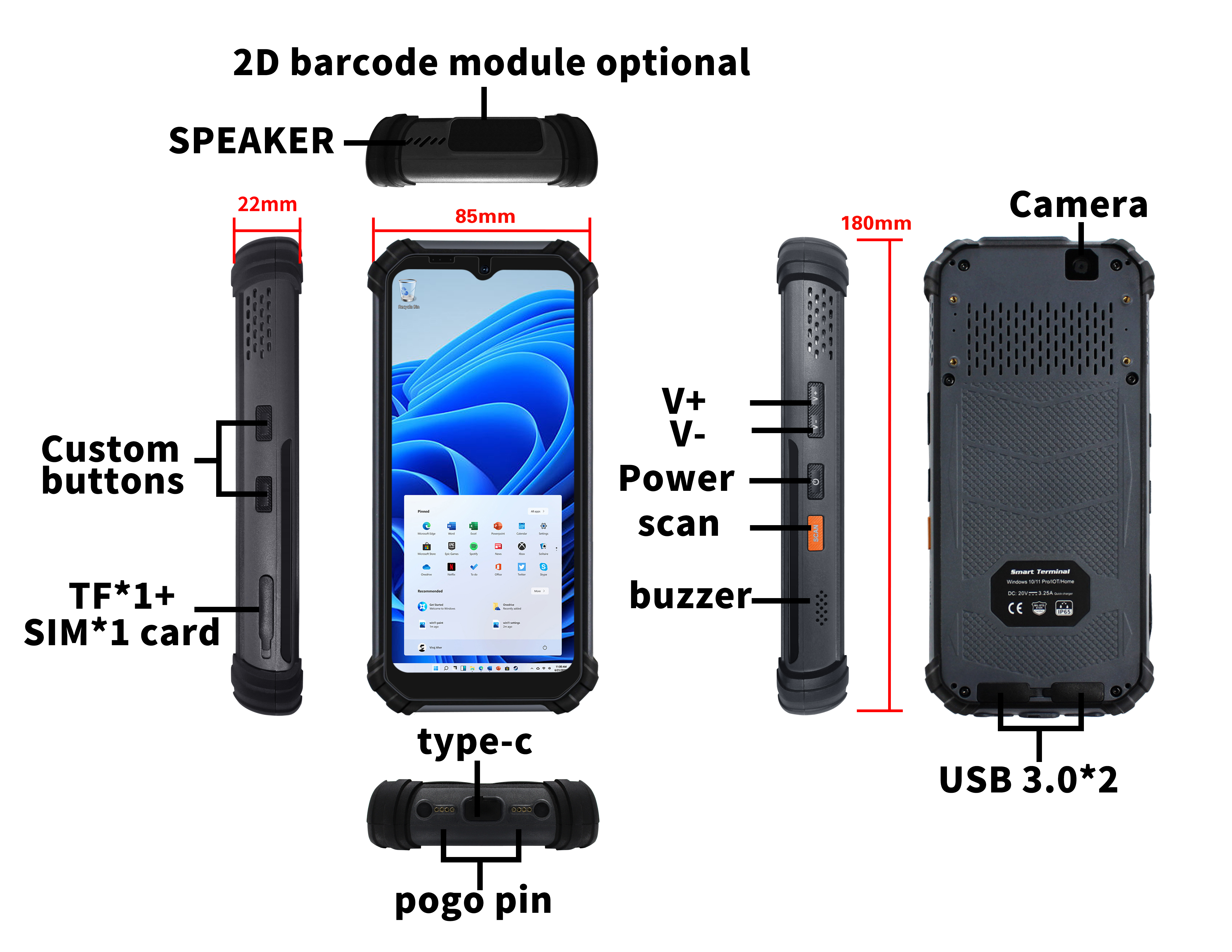

輸入/輸出介面 Type-C×1(全功能;20W 快充);SIM 卡槽×1;TF 卡槽×1;USB 3.0×2
底部 8PIN 彈簧針介面
按鍵 音量加減鍵、電源鍵、掃描鍵
自訂按鍵 ×2
一维/二维條碼 可選配:NLS-N1、Zebra SE5500、Zebra SE4710,SE655(一维)亦可選配
配件 藍色包裝盒;充電器(20W);手掛繩;螺絲及螺絲起子
可選配:擴充底座
多媒體(硬體解碼) 圖片瀏覽:BMP、JPG、GIF、PNG
影片格式:MEPG 1/2/4、H.263/H.264、RMVB、WMV/VC-1、MVC、AVS、MJPEG(最高支援 1080P)
音訊格式:MP3、WMA、WAV、OGG、FLAC、ALAC、APE、AAC、AC-3、DTS(需取得授權)
防護等級 IP65 防塵防水等級、1.2 公尺防掉落能力
溫度 儲存溫度:-40°C 至 60°C;操作溫度:-20°C 至 55°C

應用場景

📦
智慧物流管理
🏭
工業4.0數據採集
🛒
現代零售業作業
🔍
行動條碼掃描作業
